A vapor barrier is a polyethylene sheeting system installed on the ground and walls of a crawl space or basement to block ground moisture from migrating into the structural environment above. Understanding what a proper vapor barrier consists of, however, goes well beyond simply laying plastic on the floor.
A mil is one-thousandth of an inch, and the difference between a 6-mil sheet and a 20-mil sheet is significant in terms of puncture resistance, lifespan, and moisture vapor transmission rate. A 20-mil reinforced vapor barrier significantly reduces vapor diffusion and resists punctures from gravel, debris, and service personnel working in the crawl space.
Overlapping sheets by 12 inches or more at seams and securing them with butyl tape creates a continuous, mechanically bonded membrane that resists separation as the sheeting settles and moves over time. A perfectly spec'd 20-mil liner installed with poorly treated seams performs no better than a budget barrier at preventing moisture migration.
Wall coverage is the third major element of a complete vapor barrier installation that is frequently done incorrectly in Oregonia, OH homes. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
It also creates ideal conditions for mold and mildew growth on wood surfaces and insulation, contributing to indoor air quality problems in the living space above. If the barrier is incomplete or poorly sealed, a dehumidifier simply works harder against an unlimited moisture supply, running continuously and consuming excessive energy without achieving target humidity levels.
Our installers are trained on manufacturer specifications for every product we use.
The materials we install in Oregonia are built to last decades, not years.
We extend the barrier up every wall to the sill plate, closing the moisture entry pathway that floor-only installations miss.
Our vapor barrier installations carry a written warranty covering materials and workmanship.
The result is a continuous moisture envelope that protects your floor framing from ground vapor for years to come.
We remove deteriorated existing barriers, prepare the substrate, and install a properly spec'd replacement that meets current installation standards.
The installation includes full seaming, perimeter taping, and wall coverage to the base of the finished wall or sill plate.

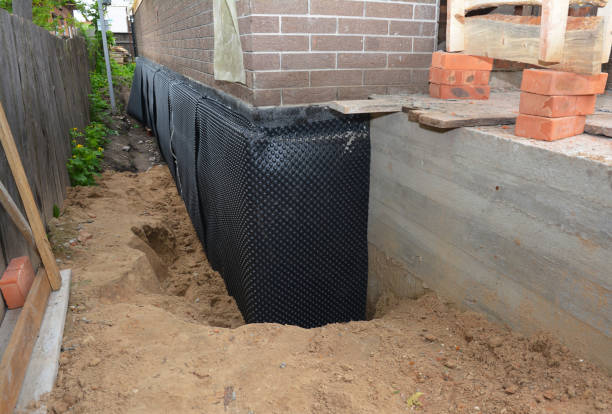

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
Full crawl space encapsulation combines a complete vapor barrier system with a dedicated dehumidifier sized for the space to achieve and maintain target humidity levels year-round.
We offer post-installation inspections for vapor barriers installed by other contractors, as well as for our own older installations, to assess barrier condition, seam integrity, and wall coverage completeness.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
"We had a previous vapor barrier installation that was barely 6-mil and had separated seams throughout. The humidity in our crawl space was unacceptable and we were starting to see mold on the floor joists. JCB Waterproofing and Construction completely replaced the barrier with a 20-mil system properly taped and sealed wall-to-wall. The difference in our indoor air quality was noticeable within a week."
"Very professional team that explained the difference between the grades of vapor barrier sheeting before recommending anything. They went with 20-mil for our space and the installation looks perfect. We can already see the humidity meter reading dropping consistently."
"The crew extended the barrier all the way up the walls to the sill plate, which the contractor who did our original installation did not do. That wall coverage made a huge difference in our humidity levels. Great work from a team that clearly knows what they are doing."
Contact JCB Waterproofing and Construction for a free site evaluation and written estimate for vapor barrier installation in Oregonia
